Remove the exhaust pipe cp by loosening the retaining screw. Be sure to use the supplied support strap to secure the exhaust muffler to a solid anchor point on the bike frame or engine.ġ. OPERATING SUGGESTIONS EXHAUST SYSTEM: After 20 hours of operation, check the exhaust pipe for excessive oil and carbon buildup. WARNING� ALWAYS WEAR A HELMET WHILE RIDING!! Check local and state laws before riding your MOTOcycle on the street. Wear riding gloves to prevent injury to hands during an accident. Never operate your MOTOcycle in an unsafe manner. Never ride on pedestrian throughways or sidewalks, especially with the engine running. Reflective clothing when riding at night. Never ride at night without proper headlight, taillight, and reflectors. Wear bright colors on your shirt and helmet. Remember that you are riding a small, motorized vehicle and other traffic may not beĪble to see you. Do not wear loose fitting pants or skirt when riding, as loose fabric can catch in the driveĬhain and cause an accident.
Always wear a helmet and eye protection when riding. Do not operate bike without the chain guard installed. When your choice shows on the display, press and hold the button for three seconds and release.
The display will change each time the button is pressed. Choose between �kph� or �mph� by pressing the button. Press and hold the button on the front for 3 seconds then let the button up. Once setup is completed you can change between the functions by pressing the button once for each function. If you pass your target number, simply start over. Once you have reached 208, press and hold the button for three seconds and the computer is set and calibrated. If you�re setting it for a 26� wheel, stop at 200 and move to 208 one number at a time. Try to stop it just before the calibration number you are using. After the tenth time the button is pressed, the numbers will begin to change rapidly. Begin pressing the button - the numbers will Increase in increments of one. The corresponding wheel circumference number directly below it is the number you will select. Choose your wheel size from the calibration table above. Now your display screen will show three zeros. Pushing the orange button while the motor is running should shut off the motor.
The longer wire should follow the throttle cable to the bike frame, where it will then be connected to the white wire coming from the motor. You may need to add a length of wire from your motor mount to get a good ground for the kill switch because of the rubber between it and the frame and the sleeves on the U-bolts. The shorter wire is to be grounded on the handle bars. The two wires coming from the twist grip are for the orange kill button.
Tighten the bolts and twist several times to test for smoothness. Slide the hand brake lever onto the handle bar first then put the top piece on the twist grip and slide over handle bar until the nipple fits into the ¼ inch hole. A thin coat of grease on the white plastic will help give a smooth twist. Place the tip of the throttle cable into the round cut out in the twist grip and allow the cable to follow the groove. Always have a qualified mechanic inspect your vehicle before operating your vehicleĪ thin coat of grease on the handle bar under the twist throttle will help with a smooth twist. Seller is not responsible for injuries and or damages of any kind resulting from operating this motorized bicycle, engine kit, or use of individual parts or instructions. The buyer and user accept total responsibility for any and all vehicle operation or use that may lead to personal injury, economic loss, social distress, other losses, costs and damages. Happy motoring! WARNING: All persons by purchasing a motorized vehicle, engine kit, or individual parts from CJR IMPORTS LLC/LIVEFAST MOTORS, or using these instructions which are provided as suggestions only, agree to the following disclaimer: Operating this motorized bicycle or bicycle engine kit, or use of individual parts, involves the risk of serious bodily injury or even death.
#Schwinn stingray chopper manual#

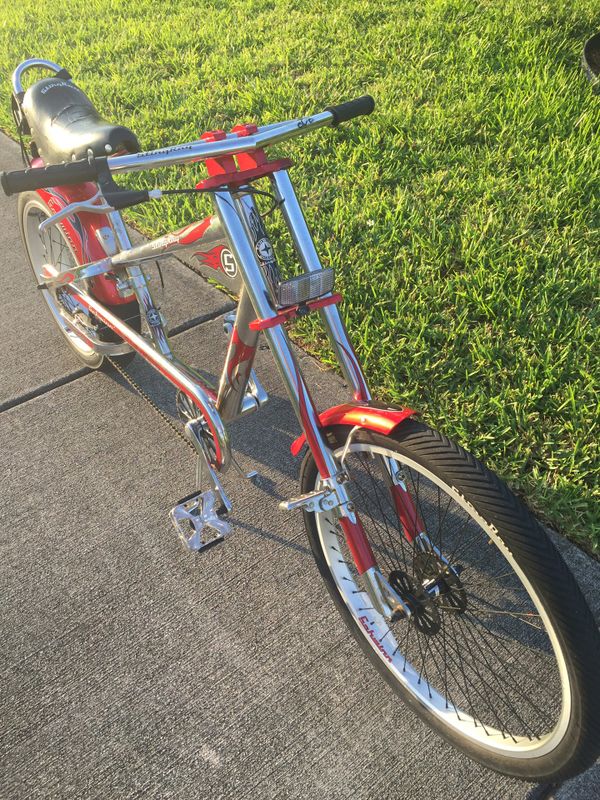

Please read through the manual before beginning installation. To provide you the best possible experience, we offer these instructions to guide your way to motorbike enjoyment. (CJR Imports, LLC) Schwinn OCC Chopper Installation Instructions Congratulations on choosing your new Livefastmotors motorbike kit.
